Okazaki Milling

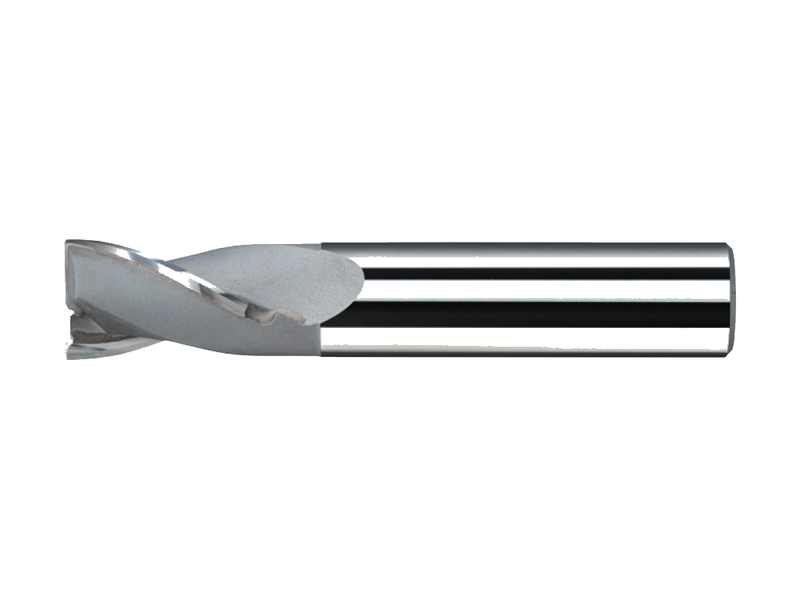

Brazed Square End Mills (2F)

Name: Brazed Square End Mills (2F)
Brand: Okazaki

Workpiece material (ISO)

P · SteelK · Cast iron

2-flute brazed-carbide square end mill for machining steel and cast iron. Uncoated, Ø20–50 mm in whole-millimetre sizes (18 catalogue items).

Specifications

Sizes & part numbers

ORDER NO.	FLUTES	Ø	FLUTE L	OAL	SHANK	COATING
BED2F200	2	20 mm	32	115	20	Uncoated
BED2L200F	2	20 mm	55	140	20	Uncoated
BED2F220	2	22 mm	32	115	20	Uncoated
BED2F250	2	25 mm	40	140	25	Uncoated
BED2L250F	2	25 mm	70	170	25	Uncoated
BED2F280	2	28 mm	40	140	25	Uncoated
BED2F300	2	30 mm	50	150	32	Uncoated
BED2L300F	2	30 mm	85	200	32	Uncoated
BED2F320	2	32 mm	50	150	32	Uncoated
BED2L320F	2	32 mm	85	200	32	Uncoated
BED2F350	2	35 mm	50	150	32	Uncoated
BED2L350F	2	35 mm	85	200	32	Uncoated
BED2F400	2	40 mm	50	150	32	Uncoated
BED2L400F	2	40 mm	100	215	32	Uncoated
BED2F450	2	45 mm	63	160	42	Uncoated
BED2L450F	2	45 mm	100	215	42	Uncoated
BED2F500	2	50 mm	63	160	42	Uncoated
BED2L500F	2	50 mm	125	240	42	Uncoated

Send us the size and quantity, our team replies with a quote and lead time within one business day.
