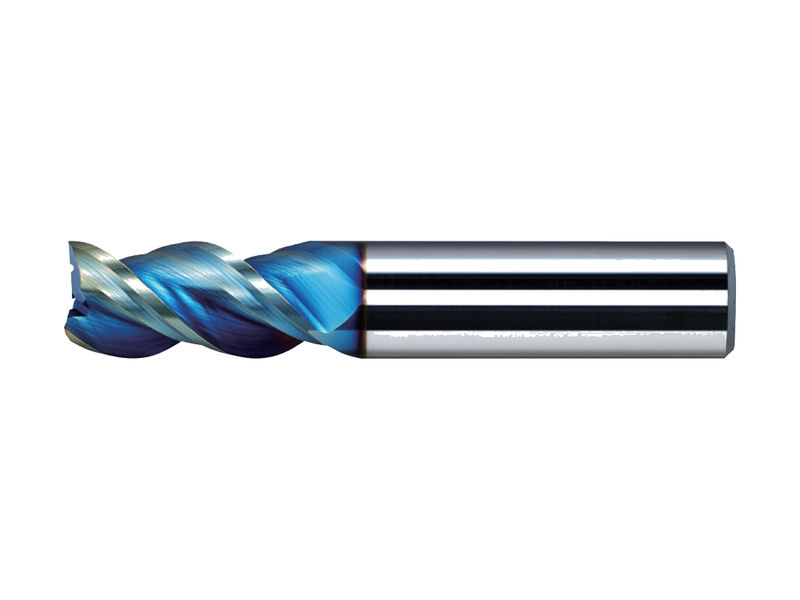

3-flute solid-carbide square end mill for machining aluminium and other non-ferrous metals, for drill-and-mill (zakkuri) plunge work. Available uncoated or DLC-coated, Ø3–20 mm in whole-millimetre sizes (18 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | FLUTES | Ø | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|
| SAE3Z-030 | 3 | 3 mm | 8 | 45 | 6 | Uncoated |
| SAE3Z-040 | 3 | 4 mm | 10 | 45 | 6 | Uncoated |
| SAE3Z-050 | 3 | 5 mm | 12 | 50 | 6 | Uncoated |
| SAE3Z-060 | 3 | 6 mm | 15 | 50 | 6 | Uncoated |
| SAE3Z-080 | 3 | 8 mm | 20 | 60 | 8 | Uncoated |
| SAE3Z-100 | 3 | 10 mm | 22 | 70 | 10 | Uncoated |
| SAE3Z-120 | 3 | 12 mm | 26 | 75 | 12 | Uncoated |
| SAE3Z-160 | 3 | 16 mm | 32 | 90 | 16 | Uncoated |
| SAE3Z-200 | 3 | 20 mm | 40 | 105 | 20 | Uncoated |
| SAE3ZD030 | 3 | 3 mm | 8 | 45 | 6 | DLC |
| SAE3ZD040 | 3 | 4 mm | 10 | 45 | 6 | DLC |
| SAE3ZD050 | 3 | 5 mm | 12 | 50 | 6 | DLC |
| SAE3ZD060 | 3 | 6 mm | 15 | 50 | 6 | DLC |
| SAE3ZD080 | 3 | 8 mm | 20 | 60 | 8 | DLC |
| SAE3ZD100 | 3 | 10 mm | 22 | 70 | 10 | DLC |
| SAE3ZD120 | 3 | 12 mm | 26 | 75 | 12 | DLC |
| SAE3ZD160 | 3 | 16 mm | 32 | 90 | 16 | DLC |
| SAE3ZD200 | 3 | 20 mm | 40 | 105 | 20 | DLC |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
