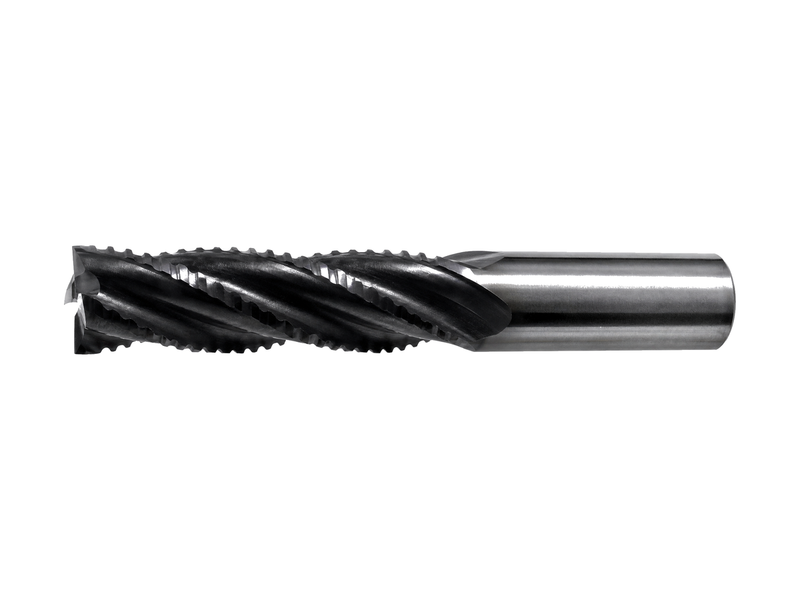

NACHI SLHV Long-Shank Heavy-Duty Square End Mill (4/6F)

Name: NACHI SLHV Long-Shank Heavy-Duty Square End Mill (4/6F)
Brand: NACHI

Workpiece material (ISO)

P · SteelM · StainlessN · Non-ferrous

4/6-flute HSS-Co square end mill for machining steel, stainless steel and non-ferrous metals, for heavy-duty milling, with an extended neck/shank for deep reach. Ø3–50 mm in whole-millimetre sizes (32 catalogue items).

Ask on Line

Specifications

Sizes & part numbers

ORDER NO.	FLUTES	Ø	FLUTE L	OAL	SHANK	COATING
SL4HV3	4	3 mm	15	60	6	HSSCO
SL4HV4	4	4 mm	20	60	8	HSSCO
SL4HV5	4	5 mm	25	65	8	HSSCO
SL4HV6	4	6 mm	25	65	8	HSSCO
SL4HV7	4	7 mm	35	80	10	HSSCO
SL4HV8	4	8 mm	35	80	10	HSSCO
SL4HV9	4	9 mm	45	95	12	HSSCO
SL4HV10	4	10 mm	45	95	12	HSSCO
SL4HV11	4	11 mm	55	105	12	HSSCO
SL4HV12	4	12 mm	55	105	12	HSSCO
SL4HV13	4	13 mm	55	110	16	HSSCO
SL4HV14	4	14 mm	55	110	16	HSSCO
SL4HV15	4	15 mm	65	120	16	HSSCO
SL4HV16	4	16 mm	65	120	16	HSSCO
SL4HV17	4	17 mm	65	130	20	HSSCO
SL4HV18	4	18 mm	65	130	20	HSSCO
SL4HV19	4	19 mm	75	140	20	HSSCO
SL4HV20	4	20 mm	75	140	20	HSSCO
SL4HV22	4	22 mm	75	140	20	HSSCO
SL4HV24 □	4	24 mm	90	160	25	HSSCO
SL4HV25	4	25 mm	90	160	25	HSSCO
SL4HV28	4	28 mm	90	160	25	HSSCO
SL6HV28	6	28 mm	90	160	25	HSSCO
SL4HV30	4	30 mm	90	160	25	HSSCO
SL6HV30	6	30 mm	90	160	25	HSSCO
SL6HV32	6	32 mm	105	190	32	HSSCO
SL6HV35	6	35 mm	105	190	32	HSSCO
SL6HV40	6	40 mm	125	210	32	HSSCO
SL6HV45	6	45 mm	145	230	32	HSSCO
SL6HV45×42	6	45 mm	145	230	42	HSSCO
SL6HV50	6	50 mm	145	230	32	HSSCO
SL6HV50×42	6	50 mm	145	230	42	HSSCO

□ = special order (made to order, longer lead time)
