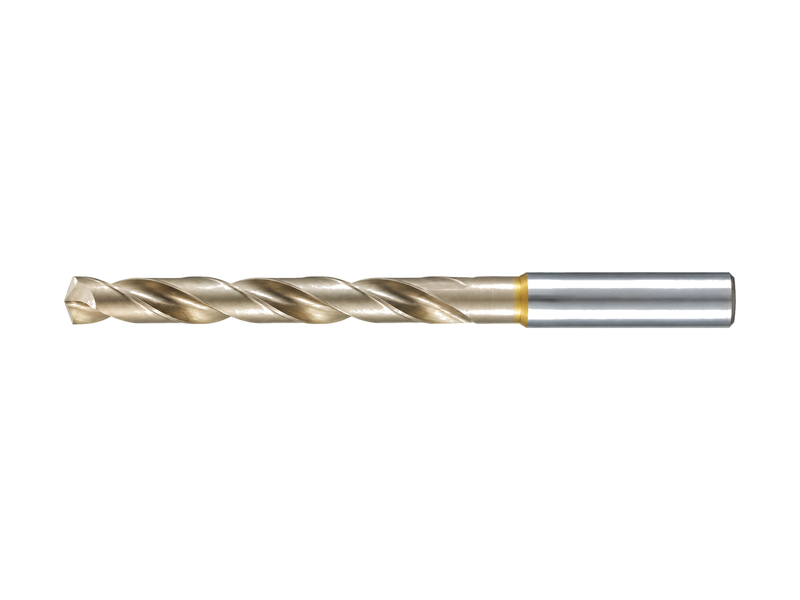

NACHI SG-ES Drill
NACHI Drilling

NACHI SG-ES Drill

Workpiece material (ISO)
P · SteelK · Cast iron

Powder-HSS (FAX) drill for machining steel and cast iron. SG (TiCN) coating, Ø2–32 mm in 0.1 mm diameter increments (205 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØFLUTE LOALSHANKCOATING
SGES2.0 2 mm 24 56 3 TiCN (SG)
SGES2.1 2.1 mm 24 56 3 TiCN (SG)
SGES2.2 2.2 mm 25 56 3 TiCN (SG)
SGES2.3 2.3 mm 25 56 3 TiCN (SG)
SGES2.4 2.4 mm 30 61 3 TiCN (SG)
SGES2.5 2.5 mm 30 61 3 TiCN (SG)
SGES2.6 2.6 mm 30 61 3 TiCN (SG)
SGES2.7 2.7 mm 33 64 3 TiCN (SG)
SGES2.8 2.8 mm 33 64 3 TiCN (SG)
SGES2.9 2.9 mm 33 64 3 TiCN (SG)
SGES3.0 3 mm 33 64 3 TiCN (SG)
SGES3.1 3.1 mm 36 68 4 TiCN (SG)
SGES3.2 3.2 mm 36 68 4 TiCN (SG)
SGES3.3 3.3 mm 36 68 4 TiCN (SG)
SGES3.4 3.4 mm 39 71 4 TiCN (SG)
SGES3.5 3.5 mm 39 71 4 TiCN (SG)
SGES3.6 3.6 mm 39 71 4 TiCN (SG)
SGES3.7 3.7 mm 39 71 4 TiCN (SG)
SGES3.8 3.8 mm 43 75 4 TiCN (SG)
SGES3.9 3.9 mm 43 75 4 TiCN (SG)
SGES4.0 4 mm 43 75 4 TiCN (SG)
SGES4.1 4.1 mm 43 85 6 TiCN (SG)
SGES4.2 4.2 mm 43 85 6 TiCN (SG)
SGES4.3 4.3 mm 47 89 6 TiCN (SG)
SGES4.4 4.4 mm 47 89 6 TiCN (SG)
SGES4.5 4.5 mm 47 89 6 TiCN (SG)
SGES4.6 4.6 mm 47 89 6 TiCN (SG)
SGES4.7 4.7 mm 47 89 6 TiCN (SG)
SGES4.8 4.8 mm 52 94 6 TiCN (SG)
SGES4.9 4.9 mm 52 94 6 TiCN (SG)
SGES5.0 5 mm 52 94 6 TiCN (SG)
SGES5.1 5.1 mm 52 94 6 TiCN (SG)
SGES5.2 5.2 mm 52 94 6 TiCN (SG)
SGES5.3 5.3 mm 52 94 6 TiCN (SG)
SGES5.4 5.4 mm 57 99 6 TiCN (SG)
SGES5.5 5.5 mm 57 99 6 TiCN (SG)
SGES5.6 5.6 mm 57 99 6 TiCN (SG)
SGES5.7 5.7 mm 57 99 6 TiCN (SG)
SGES5.8 5.8 mm 57 99 6 TiCN (SG)
SGES5.9 5.9 mm 57 99 6 TiCN (SG)
SGES6.0 6 mm 57 99 6 TiCN (SG)
SGES6.1 6.1 mm 63 107 8 TiCN (SG)
SGES6.2 6.2 mm 63 107 8 TiCN (SG)
SGES6.3 6.3 mm 63 107 8 TiCN (SG)
SGES6.4 6.4 mm 63 107 8 TiCN (SG)
SGES6.5 6.5 mm 63 107 8 TiCN (SG)
SGES6.6 6.6 mm 63 107 8 TiCN (SG)
SGES6.7 6.7 mm 63 107 8 TiCN (SG)
SGES6.8 6.8 mm 69 113 8 TiCN (SG)
SGES6.9 6.9 mm 69 113 8 TiCN (SG)
SGES7.0 7 mm 69 113 8 TiCN (SG)
SGES7.1 7.1 mm 69 113 8 TiCN (SG)
SGES7.2 7.2 mm 69 113 8 TiCN (SG)
SGES7.3 7.3 mm 69 113 8 TiCN (SG)
SGES7.4 7.4 mm 69 113 8 TiCN (SG)
SGES7.5 7.5 mm 69 113 8 TiCN (SG)
SGES7.6 7.6 mm 75 119 8 TiCN (SG)
SGES7.7 7.7 mm 75 119 8 TiCN (SG)
SGES7.8 7.8 mm 75 119 8 TiCN (SG)
SGES7.9 7.9 mm 75 119 8 TiCN (SG)
SGES8.0 8 mm 75 119 8 TiCN (SG)
SGES8.1 8.1 mm 75 125 10 TiCN (SG)
SGES8.2 8.2 mm 75 125 10 TiCN (SG)
SGES8.3 8.3 mm 75 125 10 TiCN (SG)
SGES8.4 8.4 mm 75 125 10 TiCN (SG)
SGES8.5 8.5 mm 75 125 10 TiCN (SG)
SGES8.6 8.6 mm 81 131 10 TiCN (SG)
SGES8.7 8.7 mm 81 131 10 TiCN (SG)
SGES8.8 8.8 mm 81 131 10 TiCN (SG)
SGES8.9 8.9 mm 81 131 10 TiCN (SG)
SGES9.0 9 mm 81 131 10 TiCN (SG)
SGES9.1 9.1 mm 81 131 10 TiCN (SG)
SGES9.2 9.2 mm 81 131 10 TiCN (SG)
SGES9.3 9.3 mm 81 131 10 TiCN (SG)
SGES9.4 9.4 mm 81 131 10 TiCN (SG)
SGES9.5 9.5 mm 81 131 10 TiCN (SG)
SGES9.6 9.6 mm 87 137 10 TiCN (SG)
SGES9.7 9.7 mm 87 137 10 TiCN (SG)
SGES9.8 9.8 mm 87 137 10 TiCN (SG)
SGES9.9 9.9 mm 87 137 10 TiCN (SG)
SGES10.0 10 mm 87 137 10 TiCN (SG)
SGES10.1 10.1 mm 87 144 12 TiCN (SG)
SGES10.2 10.2 mm 87 144 12 TiCN (SG)
SGES10.3 10.3 mm 87 144 12 TiCN (SG)
SGES10.4 10.4 mm 87 144 12 TiCN (SG)
SGES10.5 10.5 mm 87 144 12 TiCN (SG)
SGES10.6 10.6 mm 87 144 12 TiCN (SG)
SGES10.7 10.7 mm 94 151 12 TiCN (SG)
SGES10.8 10.8 mm 94 151 12 TiCN (SG)
SGES10.9 10.9 mm 94 151 12 TiCN (SG)
SGES11.0 11 mm 94 151 12 TiCN (SG)
SGES11.1 11.1 mm 94 151 12 TiCN (SG)
SGES11.2 11.2 mm 94 151 12 TiCN (SG)
SGES11.3 11.3 mm 94 151 12 TiCN (SG)
SGES11.4 11.4 mm 94 151 12 TiCN (SG)
SGES11.5 11.5 mm 94 151 12 TiCN (SG)
SGES11.6 11.6 mm 94 151 12 TiCN (SG)
SGES11.7 11.7 mm 94 151 12 TiCN (SG)
SGES11.8 11.8 mm 94 151 12 TiCN (SG)
SGES11.9 11.9 mm 101 158 12 TiCN (SG)
SGES12.0 12 mm 101 158 12 TiCN (SG)
SGES12.1 12.1 mm 101 158 12 TiCN (SG)
SGES12.2 12.2 mm 101 158 12 TiCN (SG)
SGES12.3 12.3 mm 101 158 12 TiCN (SG)
SGES12.4 12.4 mm 101 158 12 TiCN (SG)
SGES12.5 12.5 mm 101 158 12 TiCN (SG)
SGES12.6 12.6 mm 101 158 12 TiCN (SG)
SGES12.7 12.7 mm 101 158 12 TiCN (SG)
SGES12.8 12.8 mm 101 158 12 TiCN (SG)
SGES12.9 12.9 mm 101 158 12 TiCN (SG)
SGES13.0 13 mm 101 158 12 TiCN (SG)
SGES13.1 □ 13.1 mm 101 158 12 TiCN (SG)
SGES13.2 13.2 mm 101 158 12 TiCN (SG)
SGES13.3 13.3 mm 108 168 16 TiCN (SG)
SGES13.4 13.4 mm 108 168 16 TiCN (SG)
SGES13.5 13.5 mm 108 168 16 TiCN (SG)
SGES13.6 □ 13.6 mm 108 168 16 TiCN (SG)
SGES13.7 13.7 mm 108 168 16 TiCN (SG)
SGES13.8 13.8 mm 108 168 16 TiCN (SG)
SGES13.9 13.9 mm 108 168 16 TiCN (SG)
SGES14.0 14 mm 108 168 16 TiCN (SG)
SGES14.1 □ 14.1 mm 114 173 16 TiCN (SG)
SGES14.2 14.2 mm 114 173 16 TiCN (SG)
SGES14.3 14.3 mm 114 173 16 TiCN (SG)
SGES14.4 14.4 mm 114 173 16 TiCN (SG)
SGES14.5 14.5 mm 114 173 16 TiCN (SG)
SGES14.6 □ 14.6 mm 114 180 20 TiCN (SG)
SGES14.7 14.7 mm 114 180 20 TiCN (SG)
SGES14.8 14.8 mm 114 180 20 TiCN (SG)
SGES14.9 14.9 mm 114 180 20 TiCN (SG)
SGES15.0 15 mm 114 180 20 TiCN (SG)
SGES15.1 □ 15.1 mm 120 185 20 TiCN (SG)
SGES15.2 15.2 mm 120 185 20 TiCN (SG)
SGES15.3 15.3 mm 120 185 20 TiCN (SG)
SGES15.4 15.4 mm 120 185 20 TiCN (SG)
SGES15.5 15.5 mm 120 185 20 TiCN (SG)
SGES15.6 □ 15.6 mm 120 185 20 TiCN (SG)
SGES15.7 15.7 mm 120 185 20 TiCN (SG)
SGES15.8 15.8 mm 120 185 20 TiCN (SG)
SGES15.9 15.9 mm 120 185 20 TiCN (SG)
SGES16.0 16 mm 120 185 20 TiCN (SG)
SGES16.1 □ 16.1 mm 125 189 20 TiCN (SG)
SGES16.2 16.2 mm 125 189 20 TiCN (SG)
SGES16.3 16.3 mm 125 189 20 TiCN (SG)
SGES16.4 16.4 mm 125 189 20 TiCN (SG)
SGES16.5 16.5 mm 125 189 20 TiCN (SG)
SGES16.6 □ 16.6 mm 125 189 20 TiCN (SG)
SGES16.7 16.7 mm 125 189 20 TiCN (SG)
SGES16.8 16.8 mm 125 189 20 TiCN (SG)
SGES16.9 16.9 mm 125 189 20 TiCN (SG)
SGES17.0 17 mm 125 189 20 TiCN (SG)
SGES17.1 □ 17.1 mm 130 194 20 TiCN (SG)
SGES17.2 17.2 mm 130 194 20 TiCN (SG)
SGES17.3 17.3 mm 130 194 20 TiCN (SG)
SGES17.4 17.4 mm 130 194 20 TiCN (SG)
SGES17.5 17.5 mm 130 194 20 TiCN (SG)
SGES17.6 □ 17.6 mm 130 194 20 TiCN (SG)
SGES17.7 17.7 mm 130 194 20 TiCN (SG)
SGES17.8 17.8 mm 130 194 20 TiCN (SG)
SGES17.9 17.9 mm 130 194 20 TiCN (SG)
SGES18.0 18 mm 130 194 20 TiCN (SG)
SGES18.1 □ 18.1 mm 135 198 20 TiCN (SG)
SGES18.2 18.2 mm 135 198 20 TiCN (SG)
SGES18.3 18.3 mm 135 198 20 TiCN (SG)
SGES18.4 18.4 mm 135 198 20 TiCN (SG)
SGES18.5 18.5 mm 135 198 20 TiCN (SG)
SGES18.6 □ 18.6 mm 135 206 25 TiCN (SG)
SGES18.7 18.7 mm 135 206 25 TiCN (SG)
SGES18.8 18.8 mm 135 206 25 TiCN (SG)
SGES18.9 18.9 mm 135 206 25 TiCN (SG)
SGES19.0 19 mm 135 206 25 TiCN (SG)
SGES19.1 □ 19.1 mm 140 210 25 TiCN (SG)
SGES19.2 19.2 mm 140 210 25 TiCN (SG)
SGES19.3 19.3 mm 140 210 25 TiCN (SG)
SGES19.4 19.4 mm 140 210 25 TiCN (SG)
SGES19.5 19.5 mm 140 210 25 TiCN (SG)
SGES19.6 □ 19.6 mm 140 210 25 TiCN (SG)
SGES19.7 19.7 mm 140 210 25 TiCN (SG)
SGES19.8 19.8 mm 140 210 25 TiCN (SG)
SGES19.9 19.9 mm 140 210 25 TiCN (SG)
SGES20.0 20 mm 140 210 25 TiCN (SG)
SGES20.5 20.5 mm 145 214 25 TiCN (SG)
SGES21.0 21 mm 145 214 25 TiCN (SG)
SGES21.5 21.5 mm 150 218 25 TiCN (SG)
SGES22.0 22 mm 150 218 25 TiCN (SG)
SGES22.5 22.5 mm 155 223 25 TiCN (SG)
SGES23.0 23 mm 155 223 25 TiCN (SG)
SGES23.5 23.5 mm 155 223 25 TiCN (SG)
SGES24.0 24 mm 160 237 32 TiCN (SG)
SGES24.5 24.5 mm 160 237 32 TiCN (SG)
SGES25.0 25 mm 165 241 32 TiCN (SG)
SGES25.5 25.5 mm 165 241 32 TiCN (SG)
SGES26.0 26 mm 165 241 32 TiCN (SG)
SGES26.5 26.5 mm 165 241 32 TiCN (SG)
SGES27.0 27 mm 170 245 32 TiCN (SG)
SGES27.5 27.5 mm 170 245 32 TiCN (SG)
SGES28.0 28 mm 170 245 32 TiCN (SG)
SGES28.5 28.5 mm 175 248 32 TiCN (SG)
SGES29.0 29 mm 175 248 32 TiCN (SG)
SGES29.5 29.5 mm 175 248 32 TiCN (SG)
SGES30.0 30 mm 175 248 32 TiCN (SG)
SGES30.5 30.5 mm 180 252 32 TiCN (SG)
SGES31.0 31 mm 180 252 32 TiCN (SG)
SGES31.5 31.5 mm 180 252 32 TiCN (SG)
SGES32.0 32 mm 185 255 32 TiCN (SG)

□ = special order (made to order, longer lead time)
