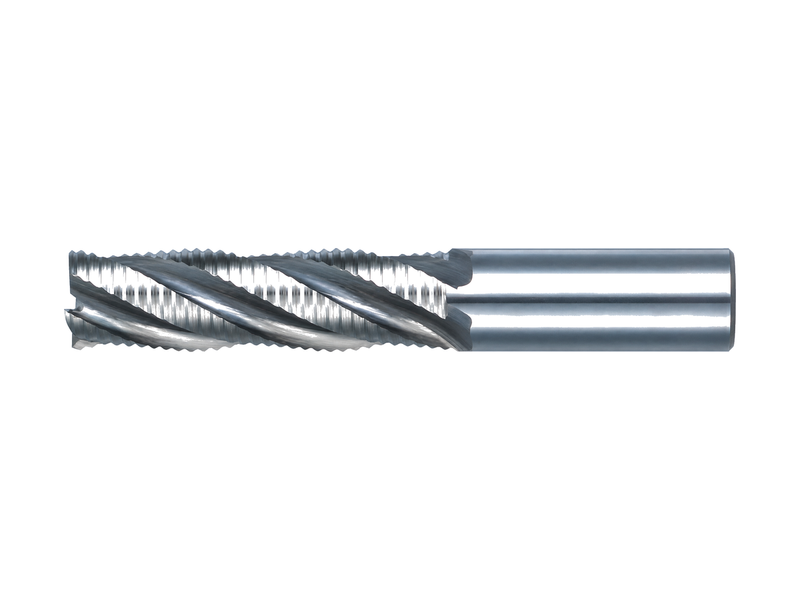

4/5/6-flute HSS-Co square end mill for machining steel, stainless steel and non-ferrous metals, for high-efficiency roughing. Ø12–50 mm in whole-millimetre sizes (16 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | FLUTES | Ø | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|
| LRE12 | 4 | 12 mm | 55 | 105 | 12 | HSSCO |
| LRE14 | 4 | 14 mm | 55 | 110 | 16 | HSSCO |
| LRE15 | 4 | 15 mm | 65 | 120 | 16 | HSSCO |
| LRE16 | 4 | 16 mm | 65 | 120 | 16 | HSSCO |
| LRE18 | 4 | 18 mm | 65 | 130 | 20 | HSSCO |
| LRE20 | 4 | 20 mm | 75 | 140 | 20 | HSSCO |
| LRE22 | 4 | 22 mm | 75 | 140 | 20 | HSSCO |
| LRE24 | 4 | 24 mm | 90 | 160 | 25 | HSSCO |
| LRE25 | 4 | 25 mm | 90 | 160 | 25 | HSSCO |
| LRE28 | 5 | 28 mm | 90 | 160 | 25 | HSSCO |
| LRE30 | 5 | 30 mm | 105 | 190 | 32 | HSSCO |
| LRE32 | 5 | 32 mm | 105 | 190 | 32 | HSSCO |
| LRE35 | 5 | 35 mm | 115 | 200 | 32 | HSSCO |
| LRE40 | 5 | 40 mm | 125 | 210 | 42 | HSSCO |
| LRE45 | 6 | 45 mm | 130 | 230 | 42 | HSSCO |
| LRE50 | 6 | 50 mm | 140 | 250 | 42 | HSSCO |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
