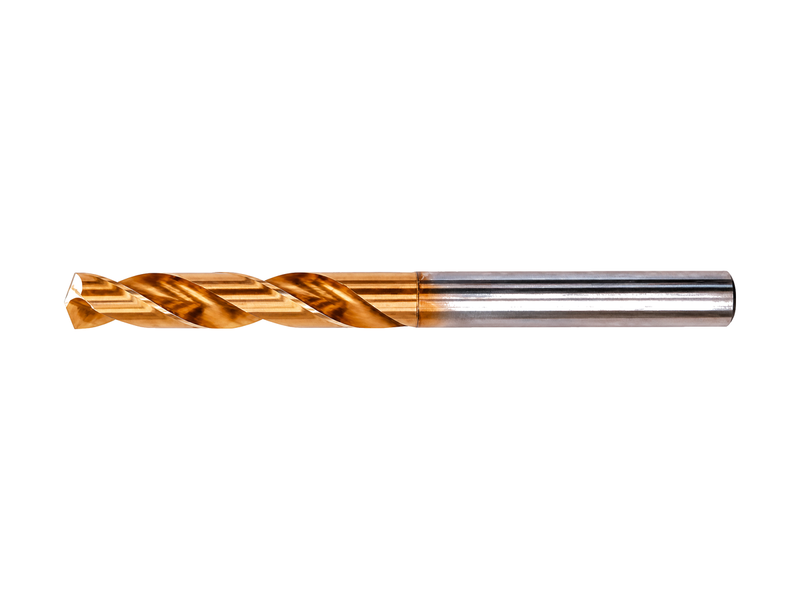

NACHI GSS Short Drill
NACHI Drilling

NACHI GSS Short Drill

Workpiece material (ISO)
P · SteelM · StainlessN · Non-ferrous

HSS drill for machining steel, stainless steel and non-ferrous metals. G (TiN) coating, Ø1–20 mm in 0.1 mm diameter increments (183 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØFLUTE LOALCOATING
GSS1.0 1 mm 8 33 TiN (G)
GSS1.1 1.1 mm 9 34 TiN (G)
GSS1.2 1.2 mm 10 35 TiN (G)
GSS1.3 1.3 mm 10 35 TiN (G)
GSS1.4 1.4 mm 12 37 TiN (G)
GSS1.5 1.5 mm 12 37 TiN (G)
GSS1.6 1.6 mm 13 39 TiN (G)
GSS1.7 1.7 mm 13 39 TiN (G)
GSS1.8 1.8 mm 15 42 TiN (G)
GSS1.9 1.9 mm 15 42 TiN (G)
GSS2.0 2 mm 16 44 TiN (G)
GSS2.1 2.1 mm 16 44 TiN (G)
GSS2.2 2.2 mm 18 47 TiN (G)
GSS2.3 2.3 mm 18 47 TiN (G)
GSS2.4 2.4 mm 20 50 TiN (G)
GSS2.5 2.5 mm 20 50 TiN (G)
GSS2.6 2.6 mm 20 50 TiN (G)
GSS2.7 2.7 mm 22 54 TiN (G)
GSS2.8 2.8 mm 22 54 TiN (G)
GSS2.9 2.9 mm 22 54 TiN (G)
GSS3.0 3 mm 22 54 TiN (G)
GSS3.1 3.1 mm 24 57 TiN (G)
GSS3.2 3.2 mm 24 57 TiN (G)
GSS3.3 3.3 mm 24 57 TiN (G)
GSS3.4 3.4 mm 26 61 TiN (G)
GSS3.5 3.5 mm 26 61 TiN (G)
GSS3.6 3.6 mm 26 61 TiN (G)
GSS3.7 3.7 mm 26 61 TiN (G)
GSS3.8 3.8 mm 29 65 TiN (G)
GSS3.9 3.9 mm 29 65 TiN (G)
GSS4.0 4 mm 29 65 TiN (G)
GSS4.1 4.1 mm 29 65 TiN (G)
GSS4.2 4.2 mm 29 65 TiN (G)
GSS4.3 4.3 mm 32 69 TiN (G)
GSS4.4 4.4 mm 32 69 TiN (G)
GSS4.5 4.5 mm 32 69 TiN (G)
GSS4.6 4.6 mm 32 69 TiN (G)
GSS4.7 4.7 mm 32 69 TiN (G)
GSS4.8 4.8 mm 35 74 TiN (G)
GSS4.9 4.9 mm 35 74 TiN (G)
GSS5.0 5 mm 35 74 TiN (G)
GSS5.1 5.1 mm 35 74 TiN (G)
GSS5.2 5.2 mm 35 74 TiN (G)
GSS5.3 5.3 mm 35 74 TiN (G)
GSS5.4 5.4 mm 38 80 TiN (G)
GSS5.5 5.5 mm 38 80 TiN (G)
GSS5.6 5.6 mm 38 80 TiN (G)
GSS5.7 5.7 mm 38 80 TiN (G)
GSS5.8 5.8 mm 38 80 TiN (G)
GSS5.9 5.9 mm 38 80 TiN (G)
GSS6.0 6 mm 38 80 TiN (G)
GSS6.1 6.1 mm 42 86 TiN (G)
GSS6.2 6.2 mm 42 86 TiN (G)
GSS6.3 6.3 mm 42 86 TiN (G)
GSS6.4 6.4 mm 42 86 TiN (G)
GSS6.5 6.5 mm 42 86 TiN (G)
GSS6.6 6.6 mm 42 86 TiN (G)
GSS6.7 6.7 mm 42 86 TiN (G)
GSS6.8 6.8 mm 46 92 TiN (G)
GSS6.9 6.9 mm 46 92 TiN (G)
GSS7.0 7 mm 46 92 TiN (G)
GSS7.1 7.1 mm 46 92 TiN (G)
GSS7.2 7.2 mm 46 92 TiN (G)
GSS7.3 7.3 mm 46 92 TiN (G)
GSS7.4 7.4 mm 46 92 TiN (G)
GSS7.5 7.5 mm 46 92 TiN (G)
GSS7.6 7.6 mm 50 98 TiN (G)
GSS7.7 7.7 mm 50 98 TiN (G)
GSS7.8 7.8 mm 50 98 TiN (G)
GSS7.9 7.9 mm 50 98 TiN (G)
GSS8.0 8 mm 50 98 TiN (G)
GSS8.1 8.1 mm 50 98 TiN (G)
GSS8.2 8.2 mm 50 98 TiN (G)
GSS8.3 8.3 mm 50 98 TiN (G)
GSS8.4 8.4 mm 50 98 TiN (G)
GSS8.5 8.5 mm 50 98 TiN (G)
GSS8.6 8.6 mm 54 105 TiN (G)
GSS8.7 8.7 mm 54 105 TiN (G)
GSS8.8 8.8 mm 54 105 TiN (G)
GSS8.9 8.9 mm 54 105 TiN (G)
GSS9.0 9 mm 54 105 TiN (G)
GSS9.1 9.1 mm 54 105 TiN (G)
GSS9.2 9.2 mm 54 105 TiN (G)
GSS9.3 9.3 mm 54 105 TiN (G)
GSS9.4 9.4 mm 54 105 TiN (G)
GSS9.5 9.5 mm 54 105 TiN (G)
GSS9.6 9.6 mm 58 111 TiN (G)
GSS9.7 9.7 mm 58 111 TiN (G)
GSS9.8 9.8 mm 58 111 TiN (G)
GSS9.9 9.9 mm 58 111 TiN (G)
GSS10.0 10 mm 58 111 TiN (G)
GSS10.1 10.1 mm 58 111 TiN (G)
GSS10.2 10.2 mm 58 111 TiN (G)
GSS10.3 10.3 mm 58 111 TiN (G)
GSS10.4 10.4 mm 58 111 TiN (G)
GSS10.5 10.5 mm 58 111 TiN (G)
GSS10.6 10.6 mm 58 111 TiN (G)
GSS10.7 10.7 mm 63 119 TiN (G)
GSS10.8 10.8 mm 63 119 TiN (G)
GSS10.9 10.9 mm 63 119 TiN (G)
GSS11.0 11 mm 63 119 TiN (G)
GSS11.1 11.1 mm 63 119 TiN (G)
GSS11.2 11.2 mm 63 119 TiN (G)
GSS11.3 11.3 mm 63 119 TiN (G)
GSS11.4 11.4 mm 63 119 TiN (G)
GSS11.5 11.5 mm 63 119 TiN (G)
GSS11.6 11.6 mm 63 119 TiN (G)
GSS11.7 11.7 mm 63 119 TiN (G)
GSS11.8 11.8 mm 63 119 TiN (G)
GSS11.9 11.9 mm 68 127 TiN (G)
GSS12.0 12 mm 68 127 TiN (G)
GSS12.1 12.1 mm 68 127 TiN (G)
GSS12.2 12.2 mm 68 127 TiN (G)
GSS12.3 12.3 mm 68 127 TiN (G)
GSS12.4 12.4 mm 68 127 TiN (G)
GSS12.5 12.5 mm 68 127 TiN (G)
GSS12.6 12.6 mm 68 127 TiN (G)
GSS12.7 12.7 mm 68 127 TiN (G)
GSS12.8 12.8 mm 68 127 TiN (G)
GSS12.9 12.9 mm 68 127 TiN (G)
GSS13.0 13 mm 68 127 TiN (G)
GSS13.1 □ 13.1 mm 72 134 TiN (G)
GSS13.2 13.2 mm 72 134 TiN (G)
GSS13.3 13.3 mm 72 134 TiN (G)
GSS13.4 13.4 mm 72 134 TiN (G)
GSS13.5 13.5 mm 72 134 TiN (G)
GSS13.6 □ 13.6 mm 72 134 TiN (G)
GSS13.7 13.7 mm 72 134 TiN (G)
GSS13.8 13.8 mm 72 134 TiN (G)
GSS13.9 13.9 mm 72 134 TiN (G)
GSS14.0 14 mm 72 134 TiN (G)
GSS14.1 □ 14.1 mm 76 140 TiN (G)
GSS14.2 14.2 mm 76 140 TiN (G)
GSS14.3 14.3 mm 76 140 TiN (G)
GSS14.4 14.4 mm 76 140 TiN (G)
GSS14.5 14.5 mm 76 140 TiN (G)
GSS14.6 □ 14.6 mm 76 140 TiN (G)
GSS14.7 14.7 mm 76 140 TiN (G)
GSS14.8 14.8 mm 76 140 TiN (G)
GSS14.9 14.9 mm 76 140 TiN (G)
GSS15.0 15 mm 76 140 TiN (G)
GSS15.1 □ 15.1 mm 80 147 TiN (G)
GSS15.2 15.2 mm 80 147 TiN (G)
GSS15.3 15.3 mm 80 147 TiN (G)
GSS15.4 15.4 mm 80 147 TiN (G)
GSS15.5 15.5 mm 80 147 TiN (G)
GSS15.6 □ 15.6 mm 80 147 TiN (G)
GSS15.7 15.7 mm 80 147 TiN (G)
GSS15.8 15.8 mm 80 147 TiN (G)
GSS15.9 15.9 mm 80 147 TiN (G)
GSS16.0 16 mm 80 147 TiN (G)
GSS16.1 □ 16.1 mm 84 152 TiN (G)
GSS16.2 16.2 mm 84 152 TiN (G)
GSS16.3 16.3 mm 84 152 TiN (G)
GSS16.4 16.4 mm 84 152 TiN (G)
GSS16.5 16.5 mm 84 152 TiN (G)
GSS16.6 □ 16.6 mm 84 152 TiN (G)
GSS16.7 16.7 mm 84 152 TiN (G)
GSS16.8 16.8 mm 84 152 TiN (G)
GSS16.9 16.9 mm 84 152 TiN (G)
GSS17.0 17 mm 84 152 TiN (G)
GSS17.1 □ 17.1 mm 87 157 TiN (G)
GSS17.2 17.2 mm 87 157 TiN (G)
GSS17.3 17.3 mm 87 157 TiN (G)
GSS17.4 17.4 mm 87 157 TiN (G)
GSS17.5 17.5 mm 87 157 TiN (G)
GSS17.6 □ 17.6 mm 87 157 TiN (G)
GSS17.7 17.7 mm 87 157 TiN (G)
GSS17.8 17.8 mm 87 157 TiN (G)
GSS17.9 17.9 mm 87 157 TiN (G)
GSS18.0 18 mm 87 157 TiN (G)
GSS18.1 □ 18.1 mm 90 163 TiN (G)
GSS18.2 18.2 mm 90 163 TiN (G)
GSS18.3 18.3 mm 90 163 TiN (G)
GSS18.4 18.4 mm 90 163 TiN (G)
GSS18.5 18.5 mm 90 163 TiN (G)
GSS18.6 □ 18.6 mm 90 163 TiN (G)
GSS18.7 18.7 mm 90 163 TiN (G)
GSS18.8 18.8 mm 90 163 TiN (G)
GSS18.9 18.9 mm 90 163 TiN (G)
GSS19.0 19 mm 90 163 TiN (G)
GSS19.5 19.5 mm 94 168 TiN (G)
GSS20.0 20 mm 94 168 TiN (G)

□ = special order (made to order, longer lead time)
