NACHI GSD Standard Drill
NACHI Drilling

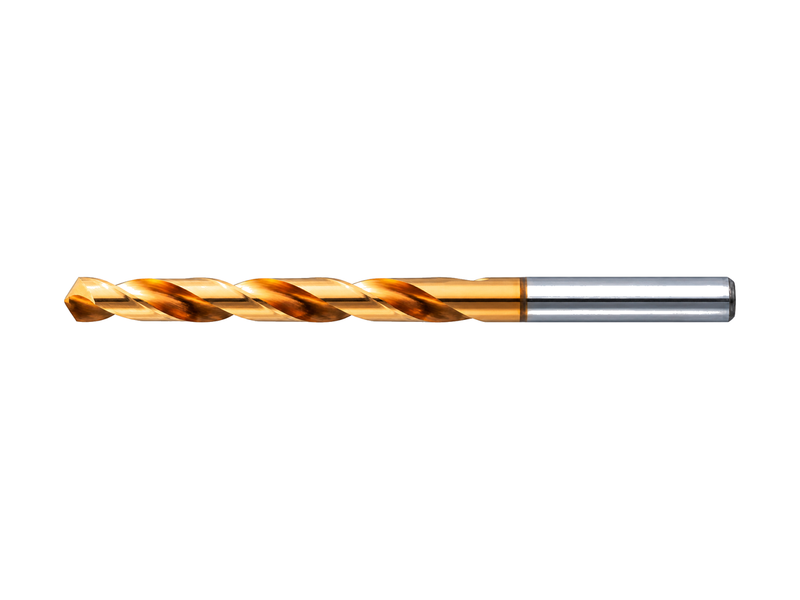

NACHI GSD Standard Drill

Workpiece material (ISO)
P · SteelM · StainlessN · Non-ferrous

HSS drill for machining steel, stainless steel and non-ferrous metals. G (TiN) coating, Ø0.5–13 mm in 0.1 mm diameter increments (126 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØFLUTE LOALCOATING
GSD0.5 0.5 mm 6 22 TiN (G)
GSD0.6 0.6 mm 7 24 TiN (G)
GSD0.7 0.7 mm 9 28 TiN (G)
GSD0.8 0.8 mm 10 30 TiN (G)
GSD0.9 0.9 mm 11 32 TiN (G)
GSD1.0 1 mm 12 34 TiN (G)
GSD1.1 1.1 mm 14 36 TiN (G)
GSD1.2 1.2 mm 16 38 TiN (G)
GSD1.3 1.3 mm 16 38 TiN (G)
GSD1.4 1.4 mm 18 40 TiN (G)
GSD1.5 1.5 mm 18 40 TiN (G)
GSD1.6 1.6 mm 20 43 TiN (G)
GSD1.7 1.7 mm 20 43 TiN (G)
GSD1.8 1.8 mm 22 46 TiN (G)
GSD1.9 1.9 mm 22 46 TiN (G)
GSD2.0 2 mm 24 49 TiN (G)
GSD2.1 2.1 mm 24 49 TiN (G)
GSD2.2 2.2 mm 27 53 TiN (G)
GSD2.3 2.3 mm 27 53 TiN (G)
GSD2.4 2.4 mm 30 57 TiN (G)
GSD2.5 2.5 mm 30 57 TiN (G)
GSD2.6 2.6 mm 30 57 TiN (G)
GSD2.7 2.7 mm 33 61 TiN (G)
GSD2.8 2.8 mm 33 61 TiN (G)
GSD2.9 2.9 mm 33 61 TiN (G)
GSD3.0 3 mm 33 61 TiN (G)
GSD3.1 3.1 mm 36 65 TiN (G)
GSD3.2 3.2 mm 36 65 TiN (G)
GSD3.3 3.3 mm 36 65 TiN (G)
GSD3.4 3.4 mm 39 70 TiN (G)
GSD3.5 3.5 mm 39 70 TiN (G)
GSD3.6 3.6 mm 39 70 TiN (G)
GSD3.7 3.7 mm 39 70 TiN (G)
GSD3.8 3.8 mm 43 75 TiN (G)
GSD3.9 3.9 mm 43 75 TiN (G)
GSD4.0 4 mm 43 75 TiN (G)
GSD4.1 4.1 mm 43 75 TiN (G)
GSD4.2 4.2 mm 43 75 TiN (G)
GSD4.3 4.3 mm 47 80 TiN (G)
GSD4.4 4.4 mm 47 80 TiN (G)
GSD4.5 4.5 mm 47 80 TiN (G)
GSD4.6 4.6 mm 47 80 TiN (G)
GSD4.7 4.7 mm 47 80 TiN (G)
GSD4.8 4.8 mm 52 86 TiN (G)
GSD4.9 4.9 mm 52 86 TiN (G)
GSD5.0 5 mm 52 86 TiN (G)
GSD5.1 5.1 mm 52 86 TiN (G)
GSD5.2 5.2 mm 52 86 TiN (G)
GSD5.3 5.3 mm 52 86 TiN (G)
GSD5.4 5.4 mm 57 93 TiN (G)
GSD5.5 5.5 mm 57 93 TiN (G)
GSD5.6 5.6 mm 57 93 TiN (G)
GSD5.7 5.7 mm 57 93 TiN (G)
GSD5.8 5.8 mm 57 93 TiN (G)
GSD5.9 5.9 mm 57 93 TiN (G)
GSD6.0 6 mm 57 93 TiN (G)
GSD6.1 6.1 mm 63 101 TiN (G)
GSD6.2 6.2 mm 63 101 TiN (G)
GSD6.3 6.3 mm 63 101 TiN (G)
GSD6.4 6.4 mm 63 101 TiN (G)
GSD6.5 6.5 mm 63 101 TiN (G)
GSD6.6 6.6 mm 63 101 TiN (G)
GSD6.7 6.7 mm 63 101 TiN (G)
GSD6.8 6.8 mm 69 109 TiN (G)
GSD6.9 6.9 mm 69 109 TiN (G)
GSD7.0 7 mm 69 109 TiN (G)
GSD7.1 7.1 mm 69 109 TiN (G)
GSD7.2 7.2 mm 69 109 TiN (G)
GSD7.3 7.3 mm 69 109 TiN (G)
GSD7.4 7.4 mm 69 109 TiN (G)
GSD7.5 7.5 mm 69 109 TiN (G)
GSD7.6 7.6 mm 75 117 TiN (G)
GSD7.7 7.7 mm 75 117 TiN (G)
GSD7.8 7.8 mm 75 117 TiN (G)
GSD7.9 7.9 mm 75 117 TiN (G)
GSD8.0 8 mm 75 117 TiN (G)
GSD8.1 8.1 mm 75 117 TiN (G)
GSD8.2 8.2 mm 75 117 TiN (G)
GSD8.3 8.3 mm 75 117 TiN (G)
GSD8.4 8.4 mm 75 117 TiN (G)
GSD8.5 8.5 mm 75 117 TiN (G)
GSD8.6 8.6 mm 81 125 TiN (G)
GSD8.7 8.7 mm 81 125 TiN (G)
GSD8.8 8.8 mm 81 125 TiN (G)
GSD8.9 8.9 mm 81 125 TiN (G)
GSD9.0 9 mm 81 125 TiN (G)
GSD9.1 9.1 mm 81 125 TiN (G)
GSD9.2 9.2 mm 81 125 TiN (G)
GSD9.3 9.3 mm 81 125 TiN (G)
GSD9.4 9.4 mm 81 125 TiN (G)
GSD9.5 9.5 mm 81 125 TiN (G)
GSD9.6 9.6 mm 87 133 TiN (G)
GSD9.7 9.7 mm 87 133 TiN (G)
GSD9.8 9.8 mm 87 133 TiN (G)
GSD9.9 9.9 mm 87 133 TiN (G)
GSD10.0 10 mm 87 133 TiN (G)
GSD10.1 10.1 mm 87 133 TiN (G)
GSD10.2 10.2 mm 87 133 TiN (G)
GSD10.3 10.3 mm 87 133 TiN (G)
GSD10.4 10.4 mm 87 133 TiN (G)
GSD10.5 10.5 mm 87 133 TiN (G)
GSD10.6 10.6 mm 87 133 TiN (G)
GSD10.7 10.7 mm 94 142 TiN (G)
GSD10.8 10.8 mm 94 142 TiN (G)
GSD10.9 10.9 mm 94 142 TiN (G)
GSD11.0 11 mm 94 142 TiN (G)
GSD11.1 11.1 mm 94 142 TiN (G)
GSD11.2 11.2 mm 94 142 TiN (G)
GSD11.3 11.3 mm 94 142 TiN (G)
GSD11.4 11.4 mm 94 142 TiN (G)
GSD11.5 11.5 mm 94 142 TiN (G)
GSD11.6 11.6 mm 94 142 TiN (G)
GSD11.7 11.7 mm 94 142 TiN (G)
GSD11.8 11.8 mm 94 142 TiN (G)
GSD11.9 11.9 mm 101 151 TiN (G)
GSD12.0 12 mm 101 151 TiN (G)
GSD12.1 12.1 mm 101 151 TiN (G)
GSD12.2 12.2 mm 101 151 TiN (G)
GSD12.3 12.3 mm 101 151 TiN (G)
GSD12.4 12.4 mm 101 151 TiN (G)
GSD12.5 12.5 mm 101 151 TiN (G)
GSD12.6 12.6 mm 101 151 TiN (G)
GSD12.7 12.7 mm 101 151 TiN (G)
GSD12.8 12.8 mm 101 151 TiN (G)
GSD12.9 12.9 mm 101 151 TiN (G)
GSD13.0 13 mm 101 151 TiN (G)

Get pricing & availability

Send us the size and quantity, our team replies with a quote and lead time within one business day.

Ask on Line Request a quote
