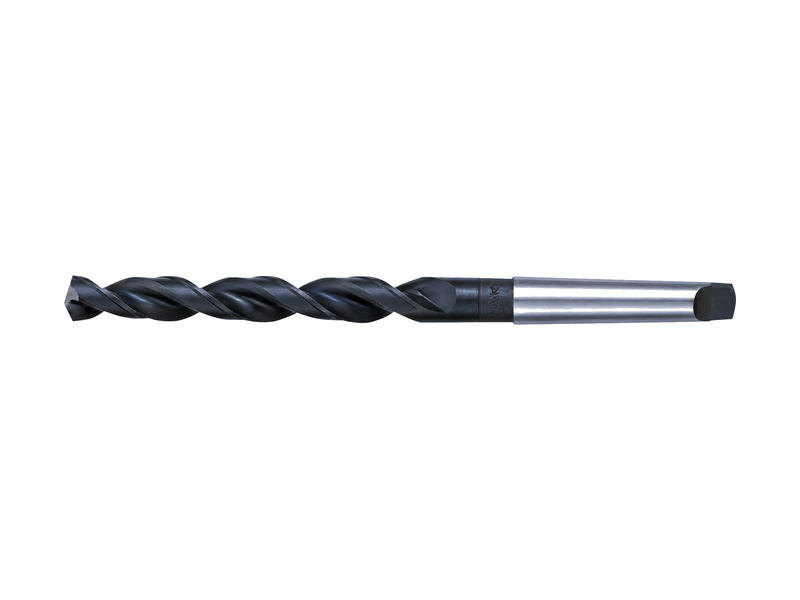

NACHI COTD Cobalt Taper Shank Drill
NACHI Drilling

NACHI COTD Cobalt Taper Shank Drill

Workpiece material (ISO)
P · SteelM · Stainless

HSS-Co drill for machining steel and stainless steel, taper-shank type. Ø5–50 mm in 0.1 mm diameter increments (303 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØFLUTE LOALCOATING
COTD5.0 □ 5 mm 62 140 HSSCO
COTD5.1 5.1 mm 62 145 HSSCO
COTD5.2 5.2 mm 64 145 HSSCO
COTD5.3 5.3 mm 64 145 HSSCO
COTD5.4 5.4 mm 64 145 HSSCO
COTD5.5 5.5 mm 64 145 HSSCO
COTD5.6 5.6 mm 67 148 HSSCO
COTD5.7 5.7 mm 67 148 HSSCO
COTD5.8 5.8 mm 67 148 HSSCO
COTD5.9 5.9 mm 67 148 HSSCO
COTD6.0 6 mm 70 148 HSSCO
COTD6.1 6.1 mm 70 152 HSSCO
COTD6.2 6.2 mm 70 152 HSSCO
COTD6.3 6.3 mm 70 152 HSSCO
COTD6.4 6.4 mm 73 152 HSSCO
COTD6.5 6.5 mm 73 152 HSSCO
COTD6.6 6.6 mm 73 155 HSSCO
COTD6.7 6.7 mm 73 155 HSSCO
COTD6.8 6.8 mm 73 155 HSSCO
COTD6.9 6.9 mm 73 155 HSSCO
COTD7.0 7 mm 75 155 HSSCO
COTD7.1 7.1 mm 78 158 HSSCO
COTD7.2 7.2 mm 78 158 HSSCO
COTD7.3 7.3 mm 78 158 HSSCO
COTD7.4 7.4 mm 78 158 HSSCO
COTD7.5 7.5 mm 78 158 HSSCO
COTD7.6 7.6 mm 82 162 HSSCO
COTD7.7 7.7 mm 82 162 HSSCO
COTD7.8 7.8 mm 82 162 HSSCO
COTD7.9 7.9 mm 82 162 HSSCO
COTD8.0 8 mm 82 162 HSSCO
COTD8.1 8.1 mm 85 168 HSSCO
COTD8.2 8.2 mm 85 168 HSSCO
COTD8.3 8.3 mm 85 168 HSSCO
COTD8.4 8.4 mm 85 168 HSSCO
COTD8.5 8.5 mm 85 168 HSSCO
COTD8.6 8.6 mm 88 172 HSSCO
COTD8.7 8.7 mm 88 172 HSSCO
COTD8.8 8.8 mm 88 172 HSSCO
COTD8.9 8.9 mm 88 172 HSSCO
COTD9.0 9 mm 88 172 HSSCO
COTD9.1 9.1 mm 92 175 HSSCO
COTD9.2 9.2 mm 92 175 HSSCO
COTD9.3 9.3 mm 92 175 HSSCO
COTD9.4 9.4 mm 92 175 HSSCO
COTD9.5 9.5 mm 92 175 HSSCO
COTD9.6 9.6 mm 95 178 HSSCO
COTD9.7 9.7 mm 95 178 HSSCO
COTD9.8 9.8 mm 95 178 HSSCO
COTD9.9 9.9 mm 95 178 HSSCO
COTD10.0 10 mm 95 178 HSSCO
COTD10.1 10.1 mm 98 182 HSSCO
COTD10.2 10.2 mm 98 182 HSSCO
COTD10.3 10.3 mm 98 182 HSSCO
COTD10.4 10.4 mm 98 182 HSSCO
COTD10.5 10.5 mm 98 182 HSSCO
COTD10.6 10.6 mm 102 185 HSSCO
COTD10.7 10.7 mm 102 185 HSSCO
COTD10.8 10.8 mm 102 185 HSSCO
COTD10.9 10.9 mm 102 185 HSSCO
COTD11.0 11 mm 102 185 HSSCO
COTD11.1 11.1 mm 105 188 HSSCO
COTD11.2 11.2 mm 105 188 HSSCO
COTD11.3 11.3 mm 105 188 HSSCO
COTD11.4 11.4 mm 105 188 HSSCO
COTD11.5 11.5 mm 105 188 HSSCO
COTD11.6 11.6 mm 108 192 HSSCO
COTD11.7 11.7 mm 108 192 HSSCO
COTD11.8 11.8 mm 108 192 HSSCO
COTD11.9 11.9 mm 108 192 HSSCO
COTD12.0 12 mm 108 192 HSSCO
COTD12.1 12.1 mm 112 195 HSSCO
COTD12.2 12.2 mm 112 195 HSSCO
COTD12.3 12.3 mm 112 195 HSSCO
COTD12.4 12.4 mm 112 195 HSSCO
COTD12.5 12.5 mm 112 195 HSSCO
COTD12.6 12.6 mm 115 198 HSSCO
COTD12.7 12.7 mm 115 198 HSSCO
COTD12.8 12.8 mm 115 198 HSSCO
COTD12.9 12.9 mm 115 198 HSSCO
COTD13.0 13 mm 115 198 HSSCO
COTD13.1 13.1 mm 118 202 HSSCO
COTD13.2 13.2 mm 118 202 HSSCO
COTD13.3 13.3 mm 118 202 HSSCO
COTD13.4 13.4 mm 118 202 HSSCO
COTD13.5 13.5 mm 118 202 HSSCO
COTD13.6 13.6 mm 122 205 HSSCO
COTD13.7 13.7 mm 122 205 HSSCO
COTD13.8 13.8 mm 122 205 HSSCO
COTD13.9 13.9 mm 122 205 HSSCO
COTD14.0 14 mm 122 205 HSSCO
COTD14.1 14.1 mm 122 222 HSSCO
COTD14.2 14.2 mm 122 222 HSSCO
COTD14.3 14.3 mm 122 222 HSSCO
COTD14.4 14.4 mm 122 222 HSSCO
COTD14.5 14.5 mm 122 222 HSSCO
COTD14.6 14.6 mm 125 225 HSSCO
COTD14.7 14.7 mm 125 225 HSSCO
COTD14.8 14.8 mm 125 225 HSSCO
COTD14.9 14.9 mm 125 225 HSSCO
COTD15.0 15 mm 125 225 HSSCO
COTD15.1 15.1 mm 128 228 HSSCO
COTD15.2 15.2 mm 128 228 HSSCO
COTD15.3 15.3 mm 128 228 HSSCO
COTD15.4 15.4 mm 128 228 HSSCO
COTD15.5 15.5 mm 128 228 HSSCO
COTD15.6 15.6 mm 130 230 HSSCO
COTD15.7 15.7 mm 130 230 HSSCO
COTD15.8 15.8 mm 130 230 HSSCO
COTD15.9 15.9 mm 130 230 HSSCO
COTD16.0 16 mm 130 230 HSSCO
COTD16.1 16.1 mm 132 232 HSSCO
COTD16.2 16.2 mm 132 232 HSSCO
COTD16.3 16.3 mm 132 232 HSSCO
COTD16.4 16.4 mm 132 232 HSSCO
COTD16.5 16.5 mm 132 232 HSSCO
COTD16.6 16.6 mm 135 235 HSSCO
COTD16.7 16.7 mm 135 235 HSSCO
COTD16.8 16.8 mm 135 235 HSSCO
COTD16.9 16.9 mm 135 235 HSSCO
COTD17.0 17 mm 135 235 HSSCO
COTD17.1 17.1 mm 140 240 HSSCO
COTD17.2 17.2 mm 140 240 HSSCO
COTD17.3 17.3 mm 140 240 HSSCO
COTD17.4 17.4 mm 140 240 HSSCO
COTD17.5 17.5 mm 140 240 HSSCO
COTD17.6 17.6 mm 140 240 HSSCO
COTD17.7 17.7 mm 140 240 HSSCO
COTD17.8 17.8 mm 140 240 HSSCO
COTD17.9 17.9 mm 140 240 HSSCO
COTD18.0 18 mm 140 240 HSSCO
COTD18.1 18.1 mm 145 245 HSSCO
COTD18.2 18.2 mm 145 245 HSSCO
COTD18.3 18.3 mm 145 245 HSSCO
COTD18.4 18.4 mm 145 245 HSSCO
COTD18.5 18.5 mm 145 245 HSSCO
COTD18.6 18.6 mm 145 245 HSSCO
COTD18.7 18.7 mm 145 245 HSSCO
COTD18.8 18.8 mm 145 245 HSSCO
COTD18.9 18.9 mm 145 245 HSSCO
COTD19.0 19 mm 145 245 HSSCO
COTD19.1 19.1 mm 150 250 HSSCO
COTD19.2 19.2 mm 150 250 HSSCO
COTD19.3 19.3 mm 150 250 HSSCO
COTD19.4 19.4 mm 150 250 HSSCO
COTD19.5 19.5 mm 150 250 HSSCO
COTD19.6 19.6 mm 150 250 HSSCO
COTD19.7 19.7 mm 150 250 HSSCO
COTD19.8 19.8 mm 150 250 HSSCO
COTD19.9 19.9 mm 150 250 HSSCO
COTD20.0 20 mm 150 250 HSSCO
COTD20.1 20.1 mm 155 255 HSSCO
COTD20.2 20.2 mm 155 255 HSSCO
COTD20.3 20.3 mm 155 255 HSSCO
COTD20.4 20.4 mm 155 255 HSSCO
COTD20.5 20.5 mm 155 255 HSSCO
COTD20.6 20.6 mm 155 255 HSSCO
COTD20.7 20.7 mm 155 255 HSSCO
COTD20.8 20.8 mm 155 255 HSSCO
COTD20.9 20.9 mm 155 255 HSSCO
COTD21.0 21 mm 155 255 HSSCO
COTD21.1 21.1 mm 160 260 HSSCO
COTD21.2 21.2 mm 160 260 HSSCO
COTD21.3 21.3 mm 160 260 HSSCO
COTD21.4 21.4 mm 160 260 HSSCO
COTD21.5 21.5 mm 160 260 HSSCO
COTD21.6 21.6 mm 160 260 HSSCO
COTD21.7 21.7 mm 160 260 HSSCO
COTD21.8 21.8 mm 160 260 HSSCO
COTD21.9 21.9 mm 160 260 HSSCO
COTD22.0 22 mm 160 260 HSSCO
COTD22.1 22.1 mm 165 265 HSSCO
COTD22.2 22.2 mm 165 265 HSSCO
COTD22.3 22.3 mm 165 265 HSSCO
COTD22.4 22.4 mm 165 265 HSSCO
COTD22.5 22.5 mm 165 265 HSSCO
COTD22.6 22.6 mm 165 265 HSSCO
COTD22.7 22.7 mm 165 265 HSSCO
COTD22.8 22.8 mm 165 265 HSSCO
COTD22.9 22.9 mm 165 265 HSSCO
COTD23.0 23 mm 165 265 HSSCO
COTD23.1 23.1 mm 165 285 HSSCO
COTD23.2 23.2 mm 165 285 HSSCO
COTD23.3 23.3 mm 165 285 HSSCO
COTD23.4 23.4 mm 165 285 HSSCO
COTD23.5 23.5 mm 165 285 HSSCO
COTD23.6 23.6 mm 165 285 HSSCO
COTD23.7 23.7 mm 165 285 HSSCO
COTD23.8 23.8 mm 165 285 HSSCO
COTD23.9 23.9 mm 165 285 HSSCO
COTD24.0 24 mm 165 285 HSSCO
COTD24.1 24.1 mm 165 285 HSSCO
COTD24.2 24.2 mm 165 285 HSSCO
COTD24.3 24.3 mm 165 285 HSSCO
COTD24.4 24.4 mm 165 285 HSSCO
COTD24.5 24.5 mm 165 285 HSSCO
COTD24.6 24.6 mm 165 285 HSSCO
COTD24.7 24.7 mm 165 285 HSSCO
COTD24.8 24.8 mm 165 285 HSSCO
COTD24.9 24.9 mm 165 285 HSSCO
COTD25.0 25 mm 165 285 HSSCO
COTD25.1 25.1 mm 165 285 HSSCO
COTD25.2 25.2 mm 165 285 HSSCO
COTD25.3 25.3 mm 165 285 HSSCO
COTD25.4 25.4 mm 165 285 HSSCO
COTD25.5 25.5 mm 165 285 HSSCO
COTD25.6 25.6 mm 165 285 HSSCO
COTD25.7 25.7 mm 165 285 HSSCO
COTD25.8 25.8 mm 165 285 HSSCO
COTD25.9 25.9 mm 165 285 HSSCO
COTD26.0 26 mm 165 285 HSSCO
COTD26.1 26.1 mm 170 290 HSSCO
COTD26.2 26.2 mm 170 290 HSSCO
COTD26.3 26.3 mm 170 290 HSSCO
COTD26.4 26.4 mm 170 290 HSSCO
COTD26.5 26.5 mm 170 290 HSSCO
COTD26.6 26.6 mm 170 290 HSSCO
COTD26.7 26.7 mm 170 290 HSSCO
COTD26.8 26.8 mm 170 290 HSSCO
COTD26.9 26.9 mm 170 290 HSSCO
COTD27.0 27 mm 170 290 HSSCO
COTD27.1 27.1 mm 175 295 HSSCO
COTD27.2 27.2 mm 175 295 HSSCO
COTD27.3 27.3 mm 175 295 HSSCO
COTD27.4 27.4 mm 175 295 HSSCO
COTD27.5 27.5 mm 175 295 HSSCO
COTD27.6 27.6 mm 175 295 HSSCO
COTD27.7 27.7 mm 175 295 HSSCO
COTD27.8 27.8 mm 175 295 HSSCO
COTD27.9 27.9 mm 175 295 HSSCO
COTD28.0 28 mm 175 295 HSSCO
COTD28.1 28.1 mm 180 300 HSSCO
COTD28.2 28.2 mm 180 300 HSSCO
COTD28.3 28.3 mm 180 300 HSSCO
COTD28.4 28.4 mm 180 300 HSSCO
COTD28.5 28.5 mm 180 300 HSSCO
COTD28.6 28.6 mm 180 300 HSSCO
COTD28.7 28.7 mm 180 300 HSSCO
COTD28.8 28.8 mm 180 300 HSSCO
COTD28.9 28.9 mm 180 300 HSSCO
COTD29.0 29 mm 180 300 HSSCO
COTD29.1 29.1 mm 185 305 HSSCO
COTD29.2 29.2 mm 185 305 HSSCO
COTD29.3 29.3 mm 185 305 HSSCO
COTD29.4 29.4 mm 185 305 HSSCO
COTD29.5 29.5 mm 185 305 HSSCO
COTD29.6 29.6 mm 185 305 HSSCO
COTD29.7 29.7 mm 185 305 HSSCO
COTD29.8 29.8 mm 185 305 HSSCO
COTD29.9 29.9 mm 185 305 HSSCO
COTD30.0 30 mm 185 305 HSSCO
COTD30.2 30.2 mm 190 310 HSSCO
COTD30.3 30.3 mm 190 310 HSSCO
COTD30.5 30.5 mm 190 310 HSSCO
COTD30.7 30.7 mm 190 310 HSSCO
COTD30.8 30.8 mm 190 310 HSSCO
COTD31.0 31 mm 190 310 HSSCO
COTD31.2 31.2 mm 195 315 HSSCO
COTD31.3 31.3 mm 195 315 HSSCO
COTD31.5 31.5 mm 195 315 HSSCO
COTD31.7 31.7 mm 195 315 HSSCO
COTD31.8 31.8 mm 195 315 HSSCO
COTD32.0 32 mm 195 315 HSSCO
COTD32.2 32.2 mm 200 345 HSSCO
COTD32.3 32.3 mm 200 345 HSSCO
COTD32.5 32.5 mm 200 345 HSSCO
COTD32.7 32.7 mm 200 345 HSSCO
COTD32.8 32.8 mm 200 345 HSSCO
COTD33.0 33 mm 200 345 HSSCO
COTD33.5 □ 33.5 mm 205 350 HSSCO
COTD34.0 34 mm 205 350 HSSCO
COTD34.5 34.5 mm 205 350 HSSCO
COTD35.0 35 mm 205 350 HSSCO
COTD35.5 35.5 mm 210 355 HSSCO
COTD36.0 36 mm 210 355 HSSCO
COTD36.5 36.5 mm 210 355 HSSCO
COTD37.0 37 mm 210 355 HSSCO
COTD37.5 37.5 mm 215 360 HSSCO
COTD38.0 38 mm 215 360 HSSCO
COTD38.5 38.5 mm 215 360 HSSCO
COTD39.0 39 mm 215 360 HSSCO
COTD39.5 39.5 mm 220 365 HSSCO
COTD40.0 40 mm 220 365 HSSCO
COTD40.5 40.5 mm 220 365 HSSCO
COTD41.0 41 mm 220 365 HSSCO
COTD41.5 41.5 mm 225 370 HSSCO
COTD42.0 42 mm 225 370 HSSCO
COTD42.5 42.5 mm 225 370 HSSCO
COTD43.0 43 mm 225 370 HSSCO
COTD43.5 43.5 mm 230 375 HSSCO
COTD44.0 44 mm 230 375 HSSCO
COTD44.5 44.5 mm 230 375 HSSCO
COTD45.0 45 mm 230 375 HSSCO
COTD45.5 45.5 mm 235 380 HSSCO
COTD46.0 46 mm 235 380 HSSCO
COTD46.5 46.5 mm 235 380 HSSCO
COTD47.0 47 mm 235 380 HSSCO
COTD47.5 47.5 mm 240 385 HSSCO
COTD48.0 48 mm 240 385 HSSCO
COTD48.5 48.5 mm 240 385 HSSCO
COTD49.0 □ 49 mm 240 385 HSSCO
COTD49.5 49.5 mm 245 390 HSSCO
COTD50.0 50 mm 245 390 HSSCO

□ = special order (made to order, longer lead time)

Get pricing & availability

Send us the size and quantity, our team replies with a quote and lead time within one business day.

Ask on Line Request a quote
