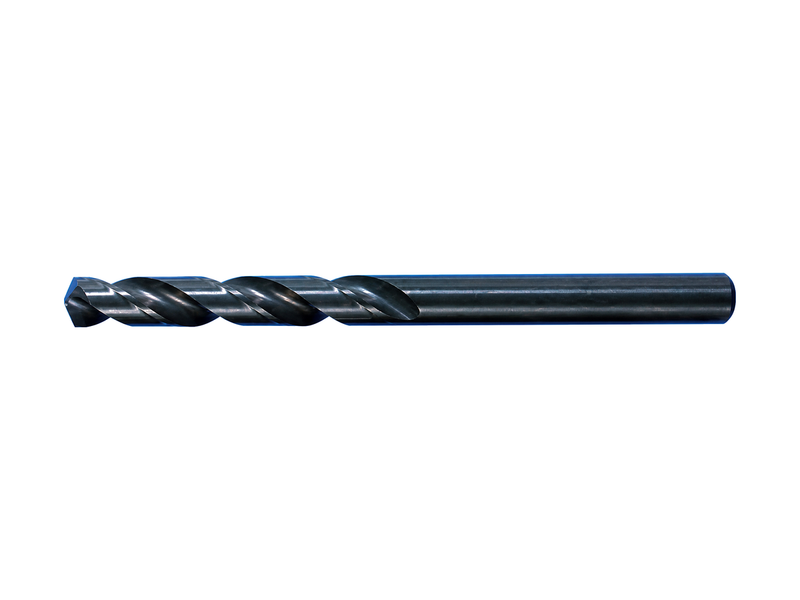

NACHI COSD Cobalt Straight Shank Drill
NACHI Drilling

NACHI COSD Cobalt Straight Shank Drill

Workpiece material (ISO)
P · SteelM · Stainless

HSS-Co drill for machining steel and stainless steel, straight-shank type. Ø0.2–13 mm in 0.1 mm diameter increments (129 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØFLUTE LOALCOATING
COSD0.2 □ 0.2 mm 2 19 HSSCO
COSD0.3 0.3 mm 2.5 20 HSSCO
COSD0.4 0.4 mm 4 24 HSSCO
COSD0.5 0.5 mm 5 27 HSSCO
COSD0.6 0.6 mm 5.5 30 HSSCO
COSD0.7 0.7 mm 7.5 32 HSSCO
COSD0.8 0.8 mm 8 34 HSSCO
COSD0.9 0.9 mm 9 36 HSSCO
COSD1.0 1 mm 10 40 HSSCO
COSD1.1 1.1 mm 11 42 HSSCO
COSD1.2 1.2 mm 13 42 HSSCO
COSD1.3 1.3 mm 13 45 HSSCO
COSD1.4 1.4 mm 14.5 48 HSSCO
COSD1.5 1.5 mm 14.5 48 HSSCO
COSD1.6 1.6 mm 16 50 HSSCO
COSD1.7 1.7 mm 16 50 HSSCO
COSD1.8 1.8 mm 17.5 52 HSSCO
COSD1.9 1.9 mm 17.5 52 HSSCO
COSD2.0 2 mm 20 55 HSSCO
COSD2.1 2.1 mm 20 55 HSSCO
COSD2.2 2.2 mm 23 58 HSSCO
COSD2.3 2.3 mm 23 58 HSSCO
COSD2.4 2.4 mm 24.5 61 HSSCO
COSD2.5 2.5 mm 24.5 61 HSSCO
COSD2.6 2.6 mm 26 64 HSSCO
COSD2.7 2.7 mm 26 64 HSSCO
COSD2.8 2.8 mm 27 67 HSSCO
COSD2.9 2.9 mm 29.5 71 HSSCO
COSD3.0 3 mm 29.5 71 HSSCO
COSD3.1 3.1 mm 29.5 71 HSSCO
COSD3.2 3.2 mm 29.5 71 HSSCO
COSD3.3 3.3 mm 31.5 73 HSSCO
COSD3.4 3.4 mm 31.5 73 HSSCO
COSD3.5 3.5 mm 31.5 73 HSSCO
COSD3.6 3.6 mm 33.5 76 HSSCO
COSD3.7 3.7 mm 33.5 76 HSSCO
COSD3.8 3.8 mm 33.5 76 HSSCO
COSD3.9 3.9 mm 36 79 HSSCO
COSD4.0 4 mm 38 83 HSSCO
COSD4.1 4.1 mm 38 83 HSSCO
COSD4.2 4.2 mm 38 83 HSSCO
COSD4.3 4.3 mm 38 83 HSSCO
COSD4.4 4.4 mm 39 86 HSSCO
COSD4.5 4.5 mm 39 86 HSSCO
COSD4.6 4.6 mm 39 86 HSSCO
COSD4.7 4.7 mm 41 89 HSSCO
COSD4.8 4.8 mm 41 89 HSSCO
COSD4.9 4.9 mm 43 92 HSSCO
COSD5.0 5 mm 43 92 HSSCO
COSD5.1 5.1 mm 43 92 HSSCO
COSD5.2 5.2 mm 45 95 HSSCO
COSD5.3 5.3 mm 45 95 HSSCO
COSD5.4 5.4 mm 45 95 HSSCO
COSD5.5 5.5 mm 45 95 HSSCO
COSD5.6 5.6 mm 47 98 HSSCO
COSD5.7 5.7 mm 47 98 HSSCO
COSD5.8 5.8 mm 47 98 HSSCO
COSD5.9 5.9 mm 47 98 HSSCO
COSD6.0 6 mm 49 102 HSSCO
COSD6.1 6.1 mm 49 102 HSSCO
COSD6.2 6.2 mm 49 102 HSSCO
COSD6.3 6.3 mm 49 102 HSSCO
COSD6.4 6.4 mm 51 105 HSSCO
COSD6.5 6.5 mm 51 105 HSSCO
COSD6.6 6.6 mm 51 105 HSSCO
COSD6.7 6.7 mm 51 105 HSSCO
COSD6.8 6.8 mm 51 105 HSSCO
COSD6.9 6.9 mm 51 105 HSSCO
COSD7.0 7 mm 51 105 HSSCO
COSD7.1 7.1 mm 53 108 HSSCO
COSD7.2 7.2 mm 53 108 HSSCO
COSD7.3 7.3 mm 53 108 HSSCO
COSD7.4 7.4 mm 55 111 HSSCO
COSD7.5 7.5 mm 55 111 HSSCO
COSD7.6 7.6 mm 55 111 HSSCO
COSD7.7 7.7 mm 57 114 HSSCO
COSD7.8 7.8 mm 57 114 HSSCO
COSD7.9 7.9 mm 57 114 HSSCO
COSD8.0 8 mm 57 114 HSSCO
COSD8.1 8.1 mm 59 117 HSSCO
COSD8.2 8.2 mm 59 117 HSSCO
COSD8.3 8.3 mm 59 117 HSSCO
COSD8.4 8.4 mm 61 121 HSSCO
COSD8.5 8.5 mm 61 121 HSSCO
COSD8.6 8.6 mm 61 121 HSSCO
COSD8.7 8.7 mm 61 121 HSSCO
COSD8.8 8.8 mm 63 124 HSSCO
COSD8.9 8.9 mm 63 124 HSSCO
COSD9.0 9 mm 63 124 HSSCO
COSD9.1 9.1 mm 63 124 HSSCO
COSD9.2 9.2 mm 65 127 HSSCO
COSD9.3 9.3 mm 65 127 HSSCO
COSD9.4 9.4 mm 65 127 HSSCO
COSD9.5 9.5 mm 65 127 HSSCO
COSD9.6 9.6 mm 67 130 HSSCO
COSD9.7 9.7 mm 67 130 HSSCO
COSD9.8 9.8 mm 67 130 HSSCO
COSD9.9 9.9 mm 67 130 HSSCO
COSD10.0 10 mm 67 130 HSSCO
COSD10.1 10.1 mm 69 133 HSSCO
COSD10.2 10.2 mm 69 133 HSSCO
COSD10.3 10.3 mm 69 133 HSSCO
COSD10.4 10.4 mm 69 133 HSSCO
COSD10.5 10.5 mm 70 137 HSSCO
COSD10.6 10.6 mm 70 137 HSSCO
COSD10.7 10.7 mm 70 137 HSSCO
COSD10.8 10.8 mm 72 140 HSSCO
COSD10.9 10.9 mm 72 140 HSSCO
COSD11.0 11 mm 72 140 HSSCO
COSD11.1 11.1 mm 72 140 HSSCO
COSD11.2 11.2 mm 75 143 HSSCO
COSD11.3 11.3 mm 75 143 HSSCO
COSD11.4 11.4 mm 75 143 HSSCO
COSD11.5 11.5 mm 75 143 HSSCO
COSD11.6 11.6 mm 77 146 HSSCO
COSD11.7 11.7 mm 77 146 HSSCO
COSD11.8 11.8 mm 77 146 HSSCO
COSD11.9 11.9 mm 77 146 HSSCO
COSD12.0 12 mm 78 149 HSSCO
COSD12.1 12.1 mm 78 149 HSSCO
COSD12.2 12.2 mm 78 149 HSSCO
COSD12.3 12.3 mm 78 149 HSSCO
COSD12.4 12.4 mm 80 152 HSSCO
COSD12.5 12.5 mm 80 152 HSSCO
COSD12.6 12.6 mm 80 152 HSSCO
COSD12.7 12.7 mm 80 152 HSSCO
COSD12.8 12.8 mm 80 152 HSSCO
COSD12.9 12.9 mm 80 152 HSSCO
COSD13.0 13 mm 80 152 HSSCO

□ = special order (made to order, longer lead time)
