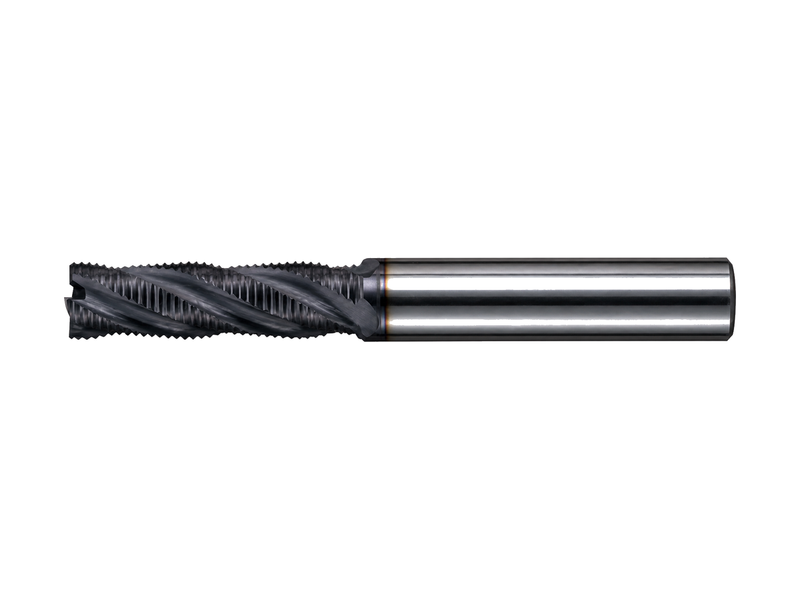

4/5/6-flute HSS-Co square end mill for machining steel, stainless steel and non-ferrous metals, for high-efficiency roughing. AG (AlCrN) coating, Ø6–50 mm in 2 mm diameter increments (19 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | FLUTES | Ø | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|
| AGREL6 | 4 | 6 mm | 26 | 80 | 6 | AlCr (AG) |
| AGREL8 | 4 | 8 mm | 35 | 90 | 8 | AlCr (AG) |
| AGREL10 | 4 | 10 mm | 45 | 100 | 10 | AlCr (AG) |
| AGREL12 | 4 | 12 mm | 53 | 110 | 12 | AlCr (AG) |
| AGREL14 | 4 | 14 mm | 53 | 110 | 12 | AlCr (AG) |
| AGREL15 | 4 | 15 mm | 53 | 125 | 16 | AlCr (AG) |
| AGREL16 | 4 | 16 mm | 63 | 125 | 16 | AlCr (AG) |
| AGREL18 | 4 | 18 mm | 63 | 125 | 16 | AlCr (AG) |
| AGREL20 | 5 | 20 mm | 75 | 140 | 20 | AlCr (AG) |
| AGREL22 | 5 | 22 mm | 75 | 140 | 20 | AlCr (AG) |
| AGREL24 | 5 | 24 mm | 90 | 160 | 20 | AlCr (AG) |
| AGREL25 | 5 | 25 mm | 90 | 160 | 25 | AlCr (AG) |
| AGREL28 | 5 | 28 mm | 90 | 160 | 25 | AlCr (AG) |
| AGREL30 | 5 | 30 mm | 106 | 180 | 25 | AlCr (AG) |
| AGREL32 | 6 | 32 mm | 106 | 180 | 32 | AlCr (AG) |
| AGREL35 | 6 | 35 mm | 106 | 180 | 32 | AlCr (AG) |
| AGREL40 | 6 | 40 mm | 125 | 200 | 32 | AlCr (AG) |
| AGREL45 | 6 | 45 mm | 125 | 230 | 42 | AlCr (AG) |
| AGREL50 | 6 | 50 mm | 150 | 250 | 42 | AlCr (AG) |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
