NACHI 4GE Square End Mill (4F)
NACHI Milling

NACHI 4GE Square End Mill (4F)

Workpiece material (ISO)
P · SteelM · StainlessN · Non-ferrous

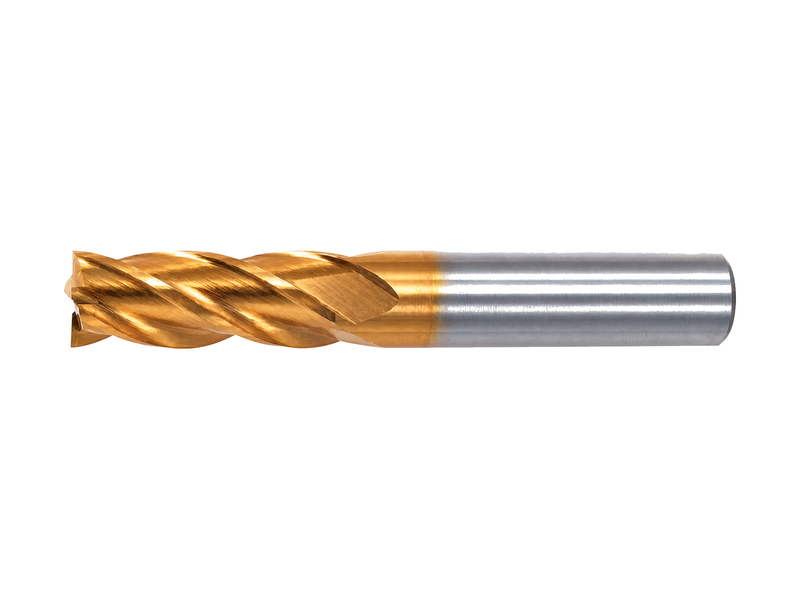

4-flute HSS-Co square end mill for machining steel, stainless steel and non-ferrous metals. G (TiN) coating, Ø2.5–50 mm in 0.5 mm diameter increments (64 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.FLUTESØFLUTE LOALSHANKCOATING
4GE2.5 4 2.5 mm 7 50 6 TiN (G)
4GE3 4 3 mm 9 50 6 TiN (G)
4GE3.5 4 3.5 mm 12 60 8 TiN (G)
4GE4 4 4 mm 12 60 8 TiN (G)
4GE4.5 4 4.5 mm 15 60 8 TiN (G)
4GE5 4 5 mm 15 60 8 TiN (G)
4GE5.5 4 5.5 mm 15 60 8 TiN (G)
4GE6 4 6 mm 15 60 8 TiN (G)
4GE6.5 4 6.5 mm 20 65 10 TiN (G)
4GE7 4 7 mm 20 65 10 TiN (G)
4GE7.5 4 7.5 mm 20 65 10 TiN (G)
4GE8 4 8 mm 20 65 10 TiN (G)
4GE8.5 4 8.5 mm 25 75 10 TiN (G)
4GE9 4 9 mm 25 75 10 TiN (G)
4GE9.5 4 9.5 mm 25 75 10 TiN (G)
4GE10 4 10 mm 25 75 10 TiN (G)
4GE10.5 4 10.5 mm 30 80 12 TiN (G)
4GE11 4 11 mm 30 80 12 TiN (G)
4GE11.5 4 11.5 mm 30 80 12 TiN (G)
4GE12 4 12 mm 30 80 12 TiN (G)
4GE12.5 4 12.5 mm 35 90 16 TiN (G)
4GE13 4 13 mm 35 90 16 TiN (G)
4GE13.5 4 13.5 mm 35 90 16 TiN (G)
4GE14 4 14 mm 35 90 16 TiN (G)
4GE14.5 4 14.5 mm 40 95 16 TiN (G)
4GE15 4 15 mm 40 95 16 TiN (G)
4GE15.5 4 15.5 mm 40 95 16 TiN (G)
4GE16 4 16 mm 40 95 16 TiN (G)
4GE16.5 4 16.5 mm 40 105 20 TiN (G)
4GE17 4 17 mm 40 105 20 TiN (G)
4GE17.5 4 17.5 mm 40 105 20 TiN (G)
4GE18 4 18 mm 40 105 20 TiN (G)
4GE18.5 4 18.5 mm 45 110 20 TiN (G)
4GE19 4 19 mm 45 110 20 TiN (G)
4GE19.5 4 19.5 mm 45 110 20 TiN (G)
4GE20 4 20 mm 45 110 20 TiN (G)
4GE21 4 21 mm 45 110 20 TiN (G)
4GE22 4 22 mm 45 110 20 TiN (G)
4GE23 4 23 mm 50 120 25 TiN (G)
4GE24 4 24 mm 50 120 25 TiN (G)
4GE25 4 25 mm 50 120 25 TiN (G)
4GE26 4 26 mm 50 120 25 TiN (G)
4GE27 4 27 mm 55 125 25 TiN (G)
4GE28 4 28 mm 55 125 25 TiN (G)
4GE29 4 29 mm 55 125 25 TiN (G)
4GE30 4 30 mm 55 125 25 TiN (G)
4GE31 4 31 mm 60 145 32 TiN (G)
4GE32 4 32 mm 60 145 32 TiN (G)
4GE33 4 33 mm 60 145 32 TiN (G)
4GE34 4 34 mm 60 145 32 TiN (G)
4GE35 4 35 mm 60 145 32 TiN (G)
4GE36 4 36 mm 60 145 32 TiN (G)
4GE37 4 37 mm 65 150 32 TiN (G)
4GE38 4 38 mm 65 150 32 TiN (G)
4GE39 4 39 mm 65 150 32 TiN (G)
4GE40 4 40 mm 65 150 32 TiN (G)
4GE42 4 42 mm 65 150 32 TiN (G)
4GE42×42 4 42 mm 65 155 42 TiN (G)
4GE45 4 45 mm 70 155 32 TiN (G)
4GE45×42 4 45 mm 70 160 42 TiN (G)
4GE48 4 48 mm 70 155 32 TiN (G)
4GE48×42 4 48 mm 70 160 42 TiN (G)
4GE50 4 50 mm 70 155 32 TiN (G)
4GE50×42 4 50 mm 70 160 42 TiN (G)
