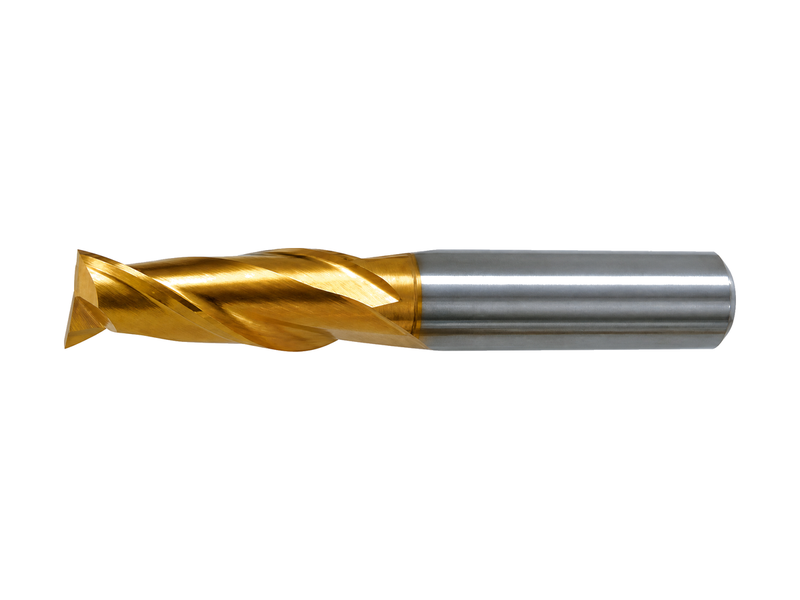

2-flute HSS-Co square end mill for machining steel, stainless steel and non-ferrous metals. G (TiN) coating, Ø1–20 mm in 0.5 mm diameter increments (29 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | FLUTES | Ø | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|
| 2MGE1 | 2 | 1 mm | 3 | 50 | 6 | TiN (G) |
| 2MGE1.5 | 2 | 1.5 mm | 4.5 | 50 | 6 | TiN (G) |
| 2MGE2 | 2 | 2 mm | 7 | 50 | 6 | TiN (G) |
| 2MGE2.5 | 2 | 2.5 mm | 7 | 50 | 6 | TiN (G) |
| 2MGE3 | 2 | 3 mm | 9 | 50 | 6 | TiN (G) |
| 2MGE3.5 | 2 | 3.5 mm | 12 | 60 | 8 | TiN (G) |
| 2MGE4 | 2 | 4 mm | 12 | 60 | 8 | TiN (G) |
| 2MGE4.5 | 2 | 4.5 mm | 15 | 60 | 8 | TiN (G) |
| 2MGE5 | 2 | 5 mm | 15 | 60 | 8 | TiN (G) |
| 2MGE5.5 | 2 | 5.5 mm | 15 | 60 | 8 | TiN (G) |
| 2MGE6 | 2 | 6 mm | 15 | 60 | 8 | TiN (G) |
| 2MGE6.5 | 2 | 6.5 mm | 20 | 65 | 10 | TiN (G) |
| 2MGE7 | 2 | 7 mm | 20 | 65 | 10 | TiN (G) |
| 2MGE7.5 | 2 | 7.5 mm | 20 | 65 | 10 | TiN (G) |
| 2MGE8 | 2 | 8 mm | 20 | 65 | 10 | TiN (G) |
| 2MGE8.5 | 2 | 8.5 mm | 25 | 75 | 10 | TiN (G) |
| 2MGE9 | 2 | 9 mm | 25 | 75 | 10 | TiN (G) |
| 2MGE9.5 | 2 | 9.5 mm | 25 | 75 | 10 | TiN (G) |
| 2MGE10 | 2 | 10 mm | 25 | 75 | 10 | TiN (G) |
| 2MGE11 | 2 | 11 mm | 30 | 80 | 12 | TiN (G) |
| 2MGE12 | 2 | 12 mm | 30 | 80 | 12 | TiN (G) |
| 2MGE13 | 2 | 13 mm | 35 | 90 | 16 | TiN (G) |
| 2MGE14 | 2 | 14 mm | 35 | 90 | 16 | TiN (G) |
| 2MGE15 | 2 | 15 mm | 40 | 95 | 16 | TiN (G) |
| 2MGE16 | 2 | 16 mm | 40 | 95 | 16 | TiN (G) |
| 2MGE17 | 2 | 17 mm | 40 | 105 | 20 | TiN (G) |
| 2MGE18 | 2 | 18 mm | 40 | 105 | 20 | TiN (G) |
| 2MGE19 | 2 | 19 mm | 45 | 110 | 20 | TiN (G) |
| 2MGE20 | 2 | 20 mm | 45 | 110 | 20 | TiN (G) |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
